PRODUCTSMICRO FOG LUBRICATION UNITS
Micro Fog Lubrication Accessories
Model No. D/H/J_ _ _ _
- Conditioning and pressure control equipment for Model No. MC9-01_ _. Equipment is available in three types: filter/regulator with solenoid valve, regulator with solenoid valve, and a combination of a solenoid valve regulator and an oil mist separator.
- It can be connected to the MC9-01_ _ without using nipples or other fittings.
Model No.
| Product name | DP5 | 11 | A |
| [1] | [2] | [3] |
[1]Types of conditioning and pressure control equipment
| DP5 | Filter/regulator with solenoid valve (5 μm, polycarbonate bowl, and automatic drainage) |
| DM5 | Filter/regulator with solenoid valve (5 μm, metal bowl, and automatic drainage) |
| DP3 | Filter/regulator with solenoid valve (0.3 μm, polycarbonate bowl, and automatic drainage) |
| DM3 | Filter/regulator with solenoid valve (0.3 μm, metal bowl, and automatic drainage) |
| H00 | Regulator with solenoid valve |
| J00 | Regulator with solenoid valve and oil mist separator |
[2]Rated voltage of the solenoid valve
| 11 | AC 100 V 50/60 Hz |
| 12 | AC 200 V 50/60 Hz |
| 33 | DC 24 V |
[3]Connection target
| A | When the control circuit is not included |
| C | When the control circuit is included |
Notes:
- The rated voltage of the solenoid valve is always DC 24 V when the control circuit is included.
- A pressure gauge that displays the operating pressure is included.
- The filter/regulator with solenoid valve does not include functions for water or oil removal (compressed air quality class 3:-:-).
Add adjustment equipment suitable for the use environment of the lubrication system.
We provide oil mist separators (compressed air quality class 1:-:2).
Model No. PB4-_ _ _
- Manifold coupling convenient for branching micron fog from the main manifold line to individual fog nozzle sections.
- Micron fog can be extracted from each face of the prismatic column. The pipe can be connected to the face that allows for easy distribution.
Standard specifications
| Maximum distributed airflow rate | 500 dm³/min (ANR) |
| IN port (main line side) | Rc1/2 |
Model No. and typical characteristic values
| Model No. | IN port | OUT port | Number of OUT ports |
| PB4-1J0 | Rc1/2 | Rc1/8 | 18 |
| PB4-1G0 | Rc1/8 | 16 | |
| PB4-2G0 | Rc1/4 | ||
| PB4-261 | Rc1/4 | 6 | |
| PB4-320 | Rc3/8 | 2 |
Model No. 2A2×_
- The micron fog supply line can be switched according to the operating process of the machine.
- Fog supply to the machine unit can be stopped during downtime to save air consumption.
- Straight-through valve passage, which does not disturb the flow of micron fog
- The suitable number of valves for the operating pattern of the machine can be stacked (in series).
- Operating pressure range: 0.1-0.5 MPa
Orifice diameter: ø6 mm
Rated voltage: AC 100/200 V (50/60 Hz), DC 24 V
Model No.
| 2A2 | × | 2 | - | 3 | AC100V |
| Product name |
[1] | [2] | [3] |
[1]Number of series
| 2 | 2 |
| 3 | 3 |
| 4 | 4 |
| 5 | 5 |
[2]Valve sequence indicator
| 3 | External pilot, NC model (single unit model 2A2-200-0104) |
[3]Rated voltage
| AC 100 V | AC 100 V 50/60 Hz |
| AC 200 V | AC 200 V 50/60 Hz |
| DC 24 V | DC 24 V |
Model No. S20-TQ2
- Allows you to clearly check the micron fog flow on the LED bar display.
- Further enhances the reliability of the micro fog lubrication system.
- Bar display LED clearly visible from far away
- Sensitivity can easily be adjusted just by moving the threshold LED.
Standard specifications
| Operating fluid | Mixture of clean air and micron fog (mist)*1 |
| Operating pressure | 0.7 MPa max. |
| Withstand pressure | 1.0 MPa |
| Ambient temperature | 5-50°C |
| Power supply voltage | DC 24 V |
| Power consumption | 100 A max. |
| Output | NPN or PNP open collector, 100 A/DC 48 V max. (NPN or PNP output can be selected via electrical wiring.) |
| Indicator lamp | Orange LED (power supply display), green LED (fog ON display), yellow LED (setting threshold), and green LED (fog detection bar display) |
| Protection rating | Equivalent to IP54 |
| Electrical connection | Use the cable with the special connector. |
| Fluid tube | Outer diameter of 8 mm, black, for air pressure |
*1. Micron fog of oils with a low atomization rate may not be detectable.
Additionally, if the transmission of the detection light does not vary (for example, if the fog continuously flows), output may not be possible.
Model No.
| S20 | - | TQ2 | - | 0 | 0 | 0 | 0 |
| Product name | [1] | [2] | |||||
[1]Control output
| 0 | NPN and PNP compatible output (4-wire) |
| 1 | NPN output (3-wire) |
[2]Inclusion of a cable
| 0 | None |
| 1 | 3-m cable with special connector included |
| 2 | 5-m cable with special connector included |
Model No. NT_-_01
- Converts dry micron fog into fog with a particle size suitable for lubrication.
- Can be screwed into the oil filler port of a direct-acting unit, ball screw, gearbox, bearing, or other component for use.
(Three sizes of threads are available: M6 × 0.75, M6 × 1, and R1/8.) - A variety of nozzle sizes are available to support different lubrication targets.

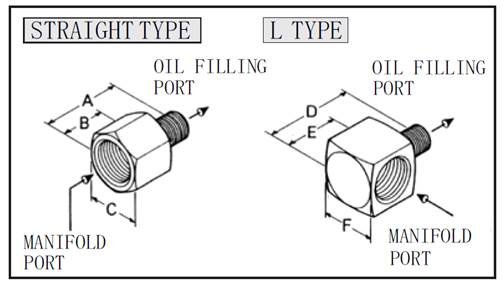

Dimensions
| Model No. | Straight type | L type | ||||
| A | B | C | D | E | F | |
| Model No. NTM-M01/P01 | 16 | 8 | 10 | 18 | 10 | 10 |
| Model No. NTM-101 | 14 | 5 | 10 | 19 | 10 | 10 |
| Model No. NT1-M01/P01 | 18 | 10 | 12 | 20 | 12 | 12 |
| Model No. NT1-101 | 20 | 11 | 12 | 23 | 14 | 14 |
Model No.
| NT | M | - | M | 01 | - | 0 | 0 | 07 |
| Product name | [1] | [2] | [3] | [4] |
[1]Manifold side connection threads
| M | M5 (female threads) | |
| 1 | Rc1/8 (female threads) | |
[2]Nozzle side connection threads (oil filler port)
| M | M6 × 0.75 (male threads) | |
| P | M6 (male threads) | |
| 1 | R1/8 (male threads) | |
[3]Shape
| 0 | Straight type |
| 1 | L type |
[4]Nozzle diameter
| 07 | Ø0.7mm |
| 10 | Ø1.0mm |
| 12 | Ø1.2mm |
| 16 | Ø1.6mm |
| 20 | Ø2.0mm* |
| 24 | Ø2.4mm* |
* Nozzle diameters of Ø2.0 mm and Ø2.4 mm are only applicable to Model No. NT1-_01.
